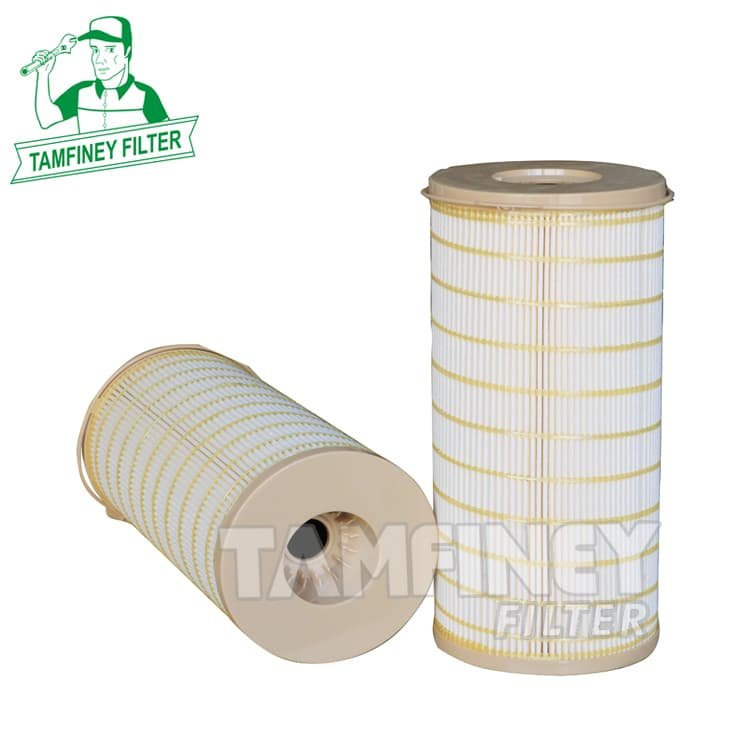

Professional Racor Diesel Fuel Filter FS20202 2020TM 2020N10 2020N-10 2020TM-OR
Your Best Racor Diesel Fuel Filter FS20202 2020TM 2020N10 2020N-10 2020TM-OR Fuel filter manufacturer in China.
RACOR 2020TM 2020TM-OR 2020N10 2020N-10 2020N-30 2020N30 2020N2 FLEETGUARD FS20202 SANY 60249072 SEPAR 20210 BELL 207694 DONALDSON P922020 WIX WF10201 VOLVO PENTA 3827277 3838854 38272779 HITACHI 4730213500 H4730213500 BALDWIN PF779010 PF789010
| Fuel Filter FS20202 2020TM 2020N10 2020N-10 2020TM-OR Parameter: | |
| Part Number | FS20202 2020TM 2020N10 2020N-10 2020TM-OR |
| Brand | Tamfiney |
| Weight | 486 g |
| Height | 245 mm |
| Outer Diameter | 128/110mm |
| Inner Diameter/ Thread Size |
|
| Minimum Order | 100 PCS |
| Place of Region: | Zhejiang, China |
| Payment Terms: | T/T |
| Price Terms: | FOB |
| Lead Time: | 30 to 50 days based on order quantities |
| Market Type: | After Market |
| Current Export Market: | Southeast Asian,North America, South America, Western Europe, Eastern Europe, Africa, Oceania |
Applications:
ATLAS COPCO QAC 1000QAC 1000QAC 1000 CUDQAC 1250QAC 1450QEC 800
CATERPILLAR 3612 ZYC1->GC DE 1500
CUMMINS KTA 50-G3
CUMMINS POWER GENERATION C 1250 D2RCF 700 D2R
DIVERS GMN 073S30S30 X
DOOSAN DAEWOO 10/455
INGERSOLL RAND 10.37010.425
JOHN DEERE 351035203522CH 570CH 670
KAESER M 500-2M 500-2
LIEBHERR R 9350 E
LIUGONG CLG 945CLG 948
SDMO R 1400 P5-M
SHANTUI SR 32 YR
VOLVO-PENTA MARINE TAMD 120 AK
Professional Racor Diesel Fuel Filter FS20202 2020TM 2020N10 2020N-10 2020TM-OR
Q: Can I install the FS20202 myself?
Filter Replacement Guide
The filter element’s replacement cycle depends on fuel contamination levels—typically every 500 hours or 10,000 kilometers. Replace it if the pressure gauge (optional) shows a difference exceeding 6–10 inHg, during an oil change, if engine power drops, or after a long shutdown. Always use Racor Aqualoce II original filter cartridges.
Steps to Replace:
- Bypass the filter first.
- Loosen the T-handle and remove the filter’s top cover.
- Pull the filter element’s top handle, twist it slowly to remove the old one, and install a new one.
- Replace the O-ring seals on the T-handle and filter cover, then lubricate them with clean fuel or engine oil.
- Fill the filter with clean fuel, reinstall the cover, and tighten the T-handle by hand—no tools needed.
Note: Use hydraulic pressure to transfer fuel from the tank or pump into the filter.
Can You Do It Yourself?
If you’re comfortable with engine maintenance and have basic tools, you might manage. But if you’re unsure, ask a pro to avoid installation errors. Always check for leaks and ensure a tight seal.
Q: How often should you change Racor fuel filters?
The replacement cycle of Racor fuel filters can check comprehensively on the specific model, usage conditions, and fuel quality. Racor brand is commonly in commercial vehicles, ships, or industrial equipment, and its filters are into external and internal types, with significant differences in replacement cycles.
General recommendation: The regular replacement cycle is usually every 20000 to 80000 kilometers or 1 to 3 years, whichever comes first; External filters (commonly installed on chassis) have a higher replacement frequency, and it is generally recommended to replace them every 15000 to 30000 kilometers or 1 to 2 years, while internal filters (integrated in the fuel tank) have a longer lifespan and replace them every 40000 to 100000 kilometers or 2 to 3 years.
Influencing factors:
The actual replacement cycle checked on the following factors:
• Fuel quality: When using low-quality or high impurity fuel for a long time, it is recommended to shorten the cycle by 30%. For example, external filters can be replaced every 10000 to 20000 kilometers.
• Operating environment: When driving in dusty, humid, or harsh road conditions, the filter is prone to accumulating impurities and needs to be checked more frequently. If necessary, it should be replaced in advance.
• Vehicle symptoms: If there are abnormalities such as weak acceleration, difficulty starting, and increased fuel consumption, it may be due to clogged filters, which should be checked and replaced immediately.
• Manufacturer specifications: Filter design requirements vary for different vehicle models or equipment. For example, for some high-end models, it is recommended to replace the Racor filter for the first time at 30000 kilometers, and the equipment maintenance manual must be followed.
• Operation precautions: When replacing, release the fuel system pressure, avoid open flames, and ensure that the installation direction is correct (the filter inlet and outlet are marked with arrows). The replacement of the built-in filter is complex, and it is recommended to be operated by professionals. After replacement, the sealing of the interface and fuel pressure should be checked (the normal range is usually 250-350kPa).
Q: What is the primary function of the FS20202 filter?
FS20202 filter is a secondary fuel filter, whose main function is to finely filter the fuel to remove small impurities, moisture, and particulate matter, thereby protecting the engine fuel system (such as injectors and fuel pumps) from wear or blockage, ensuring the cleanliness of the fuel, and maintaining the efficient and stable operation of the engine.
