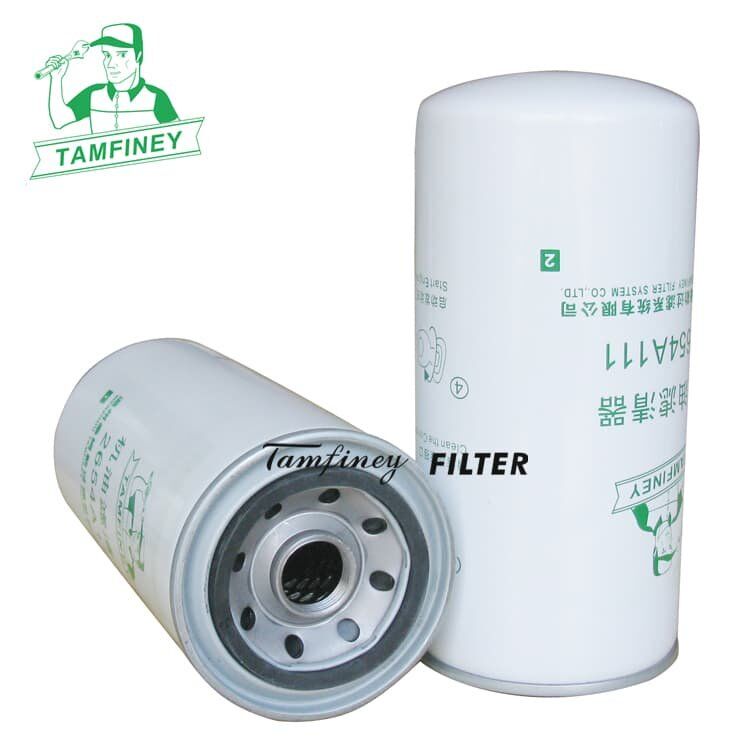

| Oil Filter 269-8325 2698325 B7378 10000-66719 Parameter: | |
| Part Number | 269-8325 2698325 B7378 10000-66719 |
| Brand | Tamfiney |
| Weight | 768 g |
| Height | 210 mm |
| Outer Diameter | 93 mm |
| Inner Diameter/ Thread Size | M 24 X 1.5 |
| Minimum Order | 100 PCS |
| Place of Region: | Zhejiang, China |
| Payment Terms: | T/T |
| Price Terms: | FOB |
| Lead Time: | 30 to 50 days based on order quantities |
| Market Type: | After Market |
| Current Export Market: | North America, South America, Western Europe, Eastern Europe, Africa, Oceania |
What does 462-1171 fit?
DOOSAN DX 165 WR-7
DOOSAN DAEWOO DL 200-5DX 140 LC-5DX 140 LC-5DX 140 LCR-5DX 140 LCR-5DX 160 W-5DX 165 W-5DX 180 LC-5
HYUNDAI HX 140 LHX 140 LCHX 145 LCRHX 160 LHX 180 LR 125 LCR-9AR 140 LC-9AR 145 LCR-9AR 160 LC-9AR 180 LC-9A
MANITOU MRT 3050MRT 3050
MASSEY FERGUSON 5465 Dyna-45475 DYNA 46445 DYNA 66455 DYNA 66465 DYNA 66475 DYNA 664806480 DYNA 67465 DYNA VT7475 DYNA VT7480 DYNA VT
OLYMPIAN GEP 150-2GEP 150-4GEP 200-2GEP 200-4XQE 150-2XQP 150-2
Precision 269-8325 Lube Oil Filter 2698325 B7378 10000-66719
Q: Should I oil the filter gasket before installing?
Q: What are the signs of a failing oil filter?
Oil filter failure can directly affect the lubrication and normal operation of the engine, and its typical signs can be classified into the following categories:
• The oil pressure warning light is on or flashing
The clogged filter obstructs the flow of oil, causing a decrease in oil pressure and triggering the oil lamp alarm on the dashboard.
• Engine abnormal noise (especially during cold start)
Poor lubrication exacerbates friction in components such as crankshafts and camshafts, often resulting in a "clattering" metallic knocking sound. The sound may decrease but not completely disappear after the car is heated up.
• Oil burning phenomenon
The abnormal opening of the bypass valve or the failure of the filter seal causes unfiltered engine oil to enter the combustion chamber, resulting in blue smoke emissions from the exhaust and significantly accelerated oil consumption.
• Decreased power and slow acceleration
Impurities mixed into the engine oil change its viscosity, increase the internal friction resistance of the engine, slow down the response during rapid acceleration, and feel weak when climbing or driving at high speeds.
• Engine overheating or abnormal increase in water temperature
Poor quality filter paper decomposes at high temperatures, producing paper scraps that block the oil cooler or oil passage, affecting heat dissipation and causing the water temperature gauge to enter the red area.
| Oil Filter 269-8325 2698325 B7378 10000-66719 Parameter: | |
| Part Number | 269-8325 2698325 B7378 10000-66719 |
| Brand | Tamfiney |
| Weight | 768 g |
| Height | 210 mm |
| Outer Diameter | 93 mm |
| Inner Diameter/ Thread Size | M 24 X 1.5 |
| Minimum Order | 100 PCS |
| Place of Region: | Zhejiang, China |
| Payment Terms: | T/T |
| Price Terms: | FOB |
| Lead Time: | 30 to 50 days based on order quantities |
| Market Type: | After Market |
| Current Export Market: | North America, South America, Western Europe, Eastern Europe, Africa, Oceania |
What does 462-1171 fit?
DOOSAN DX 165 WR-7
DOOSAN DAEWOO DL 200-5DX 140 LC-5DX 140 LC-5DX 140 LCR-5DX 140 LCR-5DX 160 W-5DX 165 W-5DX 180 LC-5
HYUNDAI HX 140 LHX 140 LCHX 145 LCRHX 160 LHX 180 LR 125 LCR-9AR 140 LC-9AR 145 LCR-9AR 160 LC-9AR 180 LC-9A
MANITOU MRT 3050MRT 3050
MASSEY FERGUSON 5465 Dyna-45475 DYNA 46445 DYNA 66455 DYNA 66465 DYNA 66475 DYNA 664806480 DYNA 67465 DYNA VT7475 DYNA VT7480 DYNA VT
OLYMPIAN GEP 150-2GEP 150-4GEP 200-2GEP 200-4XQE 150-2XQP 150-2
Precision 269-8325 Lube Oil Filter 2698325 B7378 10000-66719
Q: Should I oil the filter gasket before installing?
Yes, an appropriate amount of oil should be applied to the filter gasket (i.e. sealing ring) before installation, but the specific type of oil used depends on the type of filter.
Oil filter
• Apply engine oil: Apply a thin layer of new engine oil on the rubber sealing ring to help:
Reduce friction during installation to prevent damage to the sealing ring;
Enhance the sealing effect to avoid oil leakage;
Prevent the sealing ring from deforming or tearing due to dry friction.
• It is not recommended to use lubricating grease (butter): Lubricating grease may cause the sealing ring to expand or affect the sealing performance, and does not meet the working environment requirements of the oil system.
Diesel fuel filter
Oil or diesel should also be applied: Some materials suggest applying diesel or oil on the sealing ring to enhance the seal and facilitate installation.
Attention: It is not recommended to fill the diesel filter with diesel in advance to avoid air being unable to be discharged, which may cause poor fuel supply or damage to the fuel injection system.
Q: What are the signs of a failing oil filter?
Oil filter failure can directly affect the lubrication and normal operation of the engine, and its typical signs can be classified into the following categories:
• The oil pressure warning light is on or flashing
The clogged filter obstructs the flow of oil, causing a decrease in oil pressure and triggering the oil lamp alarm on the dashboard.
• Engine abnormal noise (especially during cold start)
Poor lubrication exacerbates friction in components such as crankshafts and camshafts, often resulting in a "clattering" metallic knocking sound. The sound may decrease but not completely disappear after the car is heated up.
• Oil burning phenomenon
The abnormal opening of the bypass valve or the failure of the filter seal causes unfiltered engine oil to enter the combustion chamber, resulting in blue smoke emissions from the exhaust and significantly accelerated oil consumption.
• Decreased power and slow acceleration
Impurities mixed into the engine oil change its viscosity, increase the internal friction resistance of the engine, slow down the response during rapid acceleration, and feel weak when climbing or driving at high speeds.
• Engine overheating or abnormal increase in water temperature
Poor quality filter paper decomposes at high temperatures, producing paper scraps that block the oil cooler or oil passage, affecting heat dissipation and causing the water temperature gauge to enter the red area.
• Abnormal driving of the vehicle (such as rubbing, idling and stalling)
Although some information mentions the issue of "gasoline filter", severe blockage of the oil filter may indirectly affect the stable operation of the engine, leading to jerking gear shifts, unstable idling, and even stalling.
• Oil leakage traces
Shell rupture, aging of sealing rings, or improper installation (such as lack of lubrication, double sealing rings, impurities in the base) can cause oil leakage around the filter and visible oil stains at the bottom of the engine.
• Difficulty initiating
Especially in low temperature environments, clogged filters hinder the rapid flow of oil to critical parts of the engine, resulting in increased starting resistance.
• Abnormal color and texture of engine oil
Normal engine oil is a light yellow to brown transparent liquid; If it becomes dark, cloudy, or contains metal shavings, it indicates that the filter has failed and cannot effectively filter impurities.
Q: Can a dirty oil filter damage the engine?
Dirty oil filters can indeed damage the engine. Here are the main mechanisms of harm:
• Decreased filtering capacity: After prolonged use, the oil filter's filter element becomes clogged with metal debris, carbon deposits, gum, dust, and other impurities, failing to effectively filter out harmful particles from the engine oil. This allows these contaminants to circulate with the oil, accelerating internal engine wear.
• Engine oil flow obstruction: Severe blockage reduces oil flow, leading to insufficient lubrication, which may cause serious failures such as bearing seizure, shaft binding, and timing gear tooth skipping.
• Seal failure risk: Contamination or aging may cause the filter gasket to deform or crack, leading to oil leakage, which affects heat dissipation and increases the risk of engine cylinder failure.
• By-pass valve failure risk: Some low-quality or excessively dirty engine oil filters' by-pass valves may malfunction, potentially causing engine damage due to oil starvation if the filter element becomes completely clogged.
