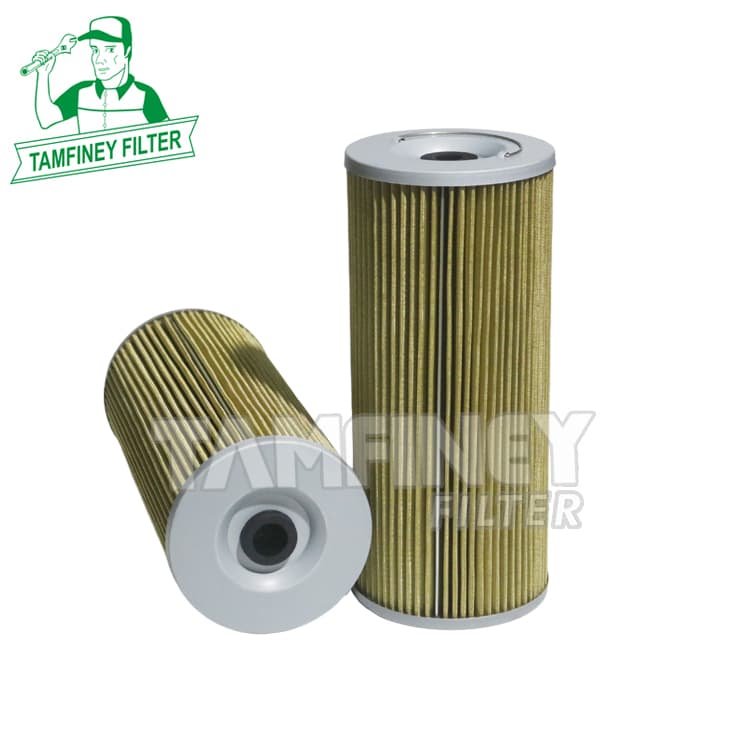

Professional Racor Fuel Filter Diesel SF-1912-30 FS1206 TP1045 134-6307 1346307

Applications:

ATLAS COPCO  QAC 1000QAC 1000QAC 1000 CUDQAC 1250QAC 1450QEC 800
CATERPILLAR  3612 ZYC1->GC DE 1500
CUMMINS  KTA 50-G3
CUMMINS POWER GENERATION  C 1250 D2RCF 700 D2R
DIVERS  GMN 073S30S30 X
DOOSAN DAEWOO  10/455
INGERSOLL RAND  10.37010.425
JOHN DEERE  351035203522CH 570CH 670
KAESER  M 500-2M 500-2
LIEBHERR  R 9350 E
LIUGONG  CLG 945CLG 948
SDMO  R 1400 P5-M
SHANTUI  SR 32 YR
VOLVO-PENTA MARINE  TAMD 120 AK

Professional Racor Fuel Filter Diesel SF-1912-30 FS1206 TP1045 134-6307 1346307

Q: What is a Racor fuel filter?

Racor fuel filter is a professional filtration equipment focused on diesel filtration and water separation technology, produced by the American brand Racor. Since its establishment in 1969, the brand has become one of the leaders in the global fuel filtration system field.

The core function of Racor fuel filters is to efficiently purify fuel and separate moisture. Its products use patented technology (such as Aquabloom filters) to remove water, dust, rust particles, and microorganisms from diesel, thereby protecting key engine components and preventing corrosion or wear; This design makes it widely used in the fields of automotive and marine engines (such as Cummins, Yuchai, and other brands).

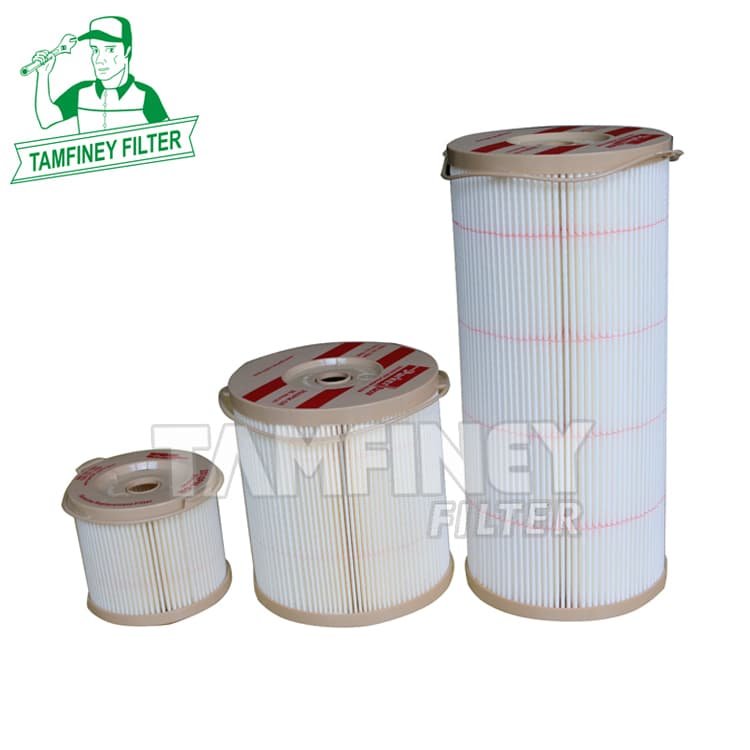

This brand belongs to Parker Hannifin, and its product line has expanded from early diesel filtration to cover eight major series including fuel, air, and engine oil, and is compatible with various fuel types (including gasoline, biofuels, etc.). Common models such as 500FG and 1000FH series are widely used in engineering machinery, generator sets, ships, and other fields.

Q: Who makes Racor fuel filters?

Racor fuel filters are manufactured by Parker Hannifin Corporation in the United States. The company officially acquired the Racor brand in 1985, making it part of the Parker Hannifin Filtration Systems Group, focusing on the research and production of fuel filtration and water separation technologies. ‌

Q: How does a racor filter work?

Racor filters (usually referring to Parker Racor series fuel filters/water separators) remove particulate matter, moisture, and pollutants from diesel through a multi-stage filtration process, based on the synergistic effect of physical separation and filter media.

The working process is divided into three core stages:

first, the water separation stage. After entering the filter component, the fuel first passes through a centrifuge or rotary joint structure, using rotational force to throw large solid particles and water droplets towards the shell wall. These water droplets settle to the bottom collection cup due to gravity; Secondly, in the coagulation filtration stage, smaller water droplets continue to settle after coalescing and becoming heavier on the surface of the conical baffle or filter element, while particulate matter is trapped in the pre filtration layer; Finally, in the fine filtration stage, the fuel passes through the proprietary Aquabloom ® The medium filter element has a surface that can condense residual moisture and capture micron level pollutants (such as ultrafine particles and emulsified water), ensuring clean fuel output.

The key design features include:

a multi-stage filtration structure (such as a two-stage design) that can handle impurities of different sizes, and a filter element accuracy of 2-30 microns to meet fuel quality and environmental requirements; Models that integrate low-pressure fuel pumps (such as the 700 series) simplify the maintenance process and prevent air from entering the pipeline; The water sensor and automatic drainage function achieve warning or automatic discharge by monitoring the water level of the collection cup.

Attention should be paid during maintenance: the color of the filter element will darken or soft mud like substances will appear after contamination, and it needs to be replaced in a timely manner; During installation, ensure that the pipeline is unobstructed and the seal is reliable, and follow the manufacturer's manual for oil injection and exhaust operations.
