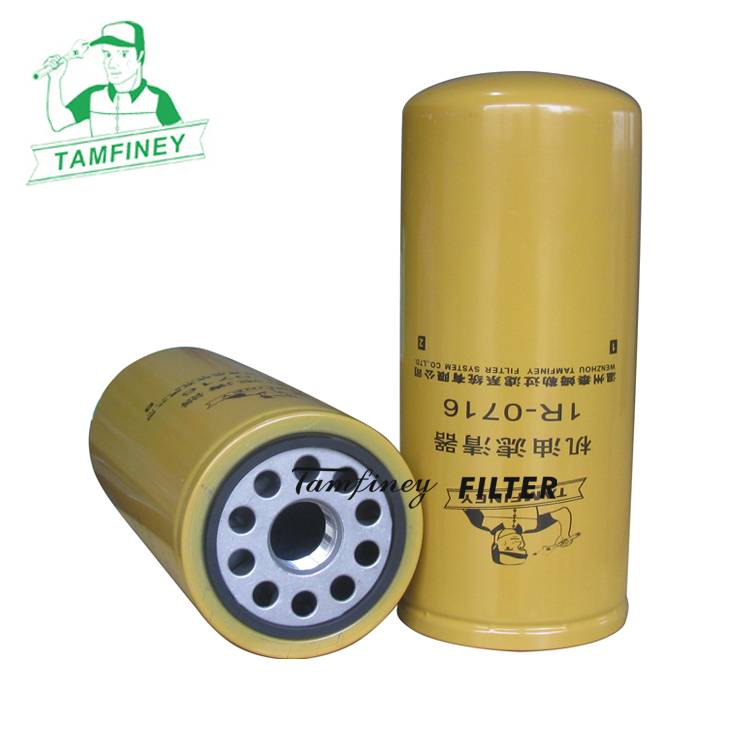

Premium CAT Lube Oil Filter 1r-0716 1r0716 2P4005 2P-4005 P554105

Oil Filter 1r-0716 1r0716 2P4005 2P-4005 P554105 Parameter:
Part Number	1r-0716 1r0716 2P4005 2P-4005 P554105
Brand	Tamfiney
Height	305 mm
Outer Diameter	136 mm
Inner Diameter/Thread Size	1 1/2-16
Minimum Order	100 pcs
Place of Region:	Zhejiang, China
Payment Terms:	T/T
Price Terms:	FOB
Lead Time:	30 to 50 days based on order quantities
Market Type:	After Market
Current Export Market:	North America, South America, Western Europe, Eastern Europe, Africa, Oceania

Application

Premium CAT Lube Oil Filter 1r-0716 1r0716 2P4005 2P-4005 P554105

Q: What is Caterpillar 1R 0716?

The Caterpillar 1R-0716 oil filter suits Caterpillar diesel engines. It works in construction machinery and generator sets. Its main role is to clean engine oil from impurities.

This filter protects internal engine parts from damage. It helps extend equipment lifespan significantly. The filter features high-efficiency materials, like shell-based media.

It has a large effective filtering area. This design ensures oil stays clean. The filter fits many Caterpillar engines, such as C9 and 3406 models.

It comes from the United States. Caterpillar makes it as an original accessory. Its quality is reliable and trusted.

When maintaining Caterpillar equipment, replace oil filters regularly. As the original 1R-0716 model, it boosts engine efficiency. It also cuts down failure rates effectively.

Q: What does an oil filter do?

The oil filter is like the "kidney" of the engine, specifically responsible for filtering impurities in the oil and protecting the healthy operation of the engine. Specifically:
Filter impurities: It can remove harmful substances such as metal debris, carbon deposits, dust, etc. from the engine oil, avoiding them from damaging the internal parts of the engine.
Protect the engine: Keep the oil clean, reduce component wear, and make the engine more durable.
Auxiliary lubrication: The filtered engine oil can better lubricate the engine and reduce friction.

Q: What is a lube oil filter?

Lubricating oil filter is an industrial equipment mainly used for purifying lubricating oil, removing impurities through physical filtration to maintain the cleanliness of the oil and the normal operation of the equipment.

The core function of a lubricating oil filter is to intercept pollutants through the filtering medium. Its main functions include removing metal debris, dust particles, oxidation products, and gel like precipitates from the lubricating oil, thereby reducing the wear of mechanical components, extending the service life of the lubricating oil, and reducing equipment failure rates; At the same time, it can effectively separate water and gas in the oil, prevent oil deterioration and cooling performance degradation.

Common types include mesh filters, sheet filters, wire gap filters, and magnetic filters, which use metal mesh, coils, or magnetic materials as filter media. The typical structure consists of a shell, filter cartridge, and inlet pipe. The top cover is often designed with a horn shape to reduce liquid impact; In industrial applications, most adopt a dual tube design to support uninterrupted operation. For example, in wind turbine gearboxes, a combination of coarse filters (such as 25 microns) and fine filters (such as 10 microns) are often configured to automatically switch filtering paths based on oil temperature.

In terms of maintenance, regular cleaning and inspection are crucial, such as cleaning once every quarter to prevent gap blockage and ensure filtration efficiency; Filters are usually installed at the outlet of the pump or in the lubricating oil circuit, and are used in conjunction with full flow or split flow filters to balance flow resistance and filtration accuracy.
