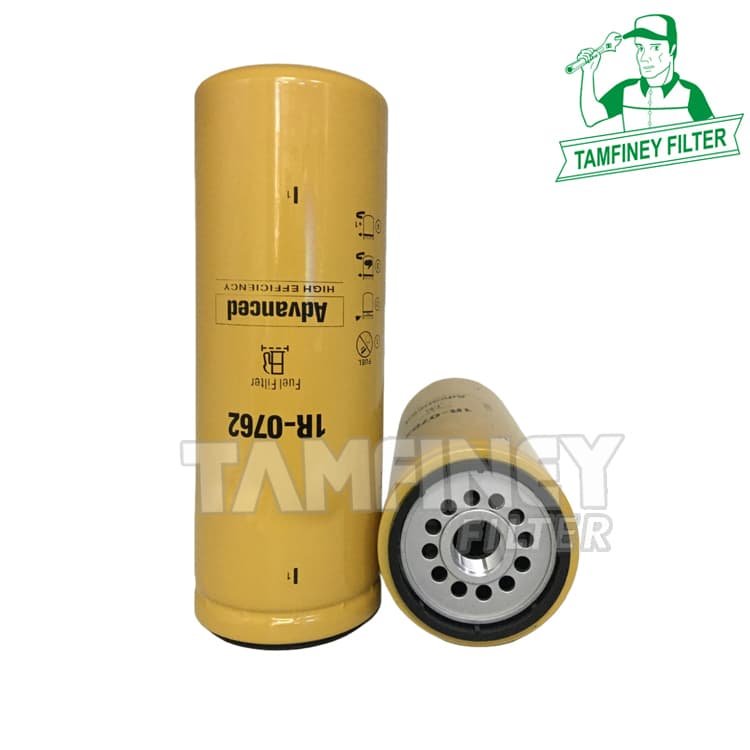

Professional CAT 1R0762 Cross Reference Filter 1R-0762 FF5624 P550625 BF7753

Fuel Filter 1R0762 1R-0762 FF5624 P550625 BF7753 Parameter:
Part Number	1R0762 1R-0762 FF5624 P550625 BF7753
Brand	Tamfiney
Weight	762 g
Height	267 mm
Outer Diameter	94 mm
Inner Diameter/ Thread Size	1-14 UNS
Minimum Order	100 PCS
Place of Region:	Zhejiang, China
Payment Terms:	T/T
Price Terms:	FOB
Lead Time:	30 to 50 days based on order quantities
Market Type:	After Market
Current Export Market:	Southeast Asian,North America, South America, Western Europe, Eastern Europe, Africa, Oceania

Application:

CATERPILLAR  120 H12 H140 H140 H140 M14 M320 C322 C-L/LN324 D324 DL/LN325 C325 CNL325 D328 D-LCR328 D-LCR329 D329 D L/LN329 D LN330 C330 D L/LN336 D336 D LN345 B345 B II LME365 B II521 B535 B541541 SERIE II725725730730
CHALLENGER  65 E680 B75 E85 E92039205MT 700 AMT 700 BMT 700 CMT 735MT 745MT 745 BMT 745 CMT 755MT 755 BMT 755 CMT 765MT 765 BMT 765 CTG 3244
CLAAS  LEXION 410LEXION 420LEXION 430LEXION 430 EVOLUTIONLEXION 440LEXION 450LEXION 460LEXION 460 EVOLUTIONLEXION 460 MTSLEXION 470LEXION 470 MONTANALEXION 480LEXION 480 MTSLEXION 510LEXION
EPIROC  Flexiroc D 55POWERROC T 50
INGERSOLL RAND  ECM 720
KOMPTECH  AHWI RT 800CRAMBO 5000CRAMBO 5000TERMINATOR 5000 S
METSO  LT 110LT 1100LT 200 HPSLT 300 HP
PERKINS  LGDF 1012
SANDVIK  DP 1500QH 331QH 440QI 430QJ 341

Professional CAT 1R0762 Cross Reference Filter 1R-0762 FF5624 P550625 BF7753

Q: Why use 1R-0762?

1R-0762 is a second fuel filter from Caterpillar brand, designed specifically for construction machinery and vehicles. Its core value lies in protecting key engine components through efficient filtration. ‌
Efficient filtration performance: High quality filter paper, with an average pore size of 70-85 microns and uniform distribution, high density, which can effectively block fine dust and moisture in diesel, reduce wear on precision components such as fuel injection pumps and diesel nozzles, and extend their service life. ‌

Reliable sealing and durability: NBR (nitrile rubber) material is as the sealing ring, which has the characteristics of oil resistance, temperature change resistance and aging resistance, to ensure that the sealing can still be maintained under extreme temperature conditions (such as severe cold or ultra-high temperature), to prevent the leakage of unfiltered fuel. At the same time, through strict testing in the production process, the sealing ring can last for 25 seconds under the pressure of 8kg, to ensure the stability of the system. ‌
Wide applicability: This filter is suitable for various Caterpillar equipment, such as excavators, bulldozers, generators, loaders, etc., and can provide continuous protection for the engines of these devices, reducing failure rates. ‌

Q: What is CAT 1R0762?

CAT 1R0762 is a diesel filter produced by Caterpillar Inc. It is mainly filter impurities and moisture in diesel, protect the engine from wear and corrosion, and ensure the cleanliness and efficient operation of the fuel system. ‌
This filter is widely used in various Caterpillar construction machinery and engine models, such as excavators, rollers, pavers, and Caterpillar 3504 engines. It is an original CAT spare part and is common in heavy industry. ‌

In terms of maintenance and replacement, CAT 1R0762, as a consumable component, requires regular inspection and replacement to maintain equipment performance; There are also compatible alternatives on the market (such as Blue Mai brand products), but users need to choose according to device requirements and reliability standards.

Q: Which direction does a fuel filter go on?

The installation direction of fuel filters is mainly determined by type and identification: external filters are usually installed on the fuel supply pipeline of the vehicle chassis, with their inlet (IN) facing the fuel tank and outlet (OUT) facing the engine; The built-in filter is integrated into the gasoline pump, installed in the opposite direction, with the inlet facing the fuel tank and the outlet facing the engine. Most filters will indicate the installation direction on the housing, and common markings include:

• Arrow: pointing in the direction of fuel flow, i.e. towards the engine.
• Letter identification: The IN end is connected to the fuel tank, and the OUT end is connected to the engine.
If the identification is unclear, the filter structure can be observed, usually with the larger end as the inlet. During installation, it is essential to follow these guidelines as incorrect orientation may result in decreased filtration efficiency or insufficient engine fuel supply.

Attention should be paid to the following during installation:

• Check identification: Carefully inspect the arrow or letter identification before installation to ensure correct orientation.
• Vehicle model differences: The position and direction of the filter may vary for different vehicle models. For example, for horizontally installed filters, the direction should be determined based on the specific layout (such as the arrow pointing to the right on the Baojun 510).
• Error avoidance: If the filter is not labeled, you can refer to the original parts direction or consult the manufacturer. Incorrect installation may shorten the filter life and affect engine performance.
