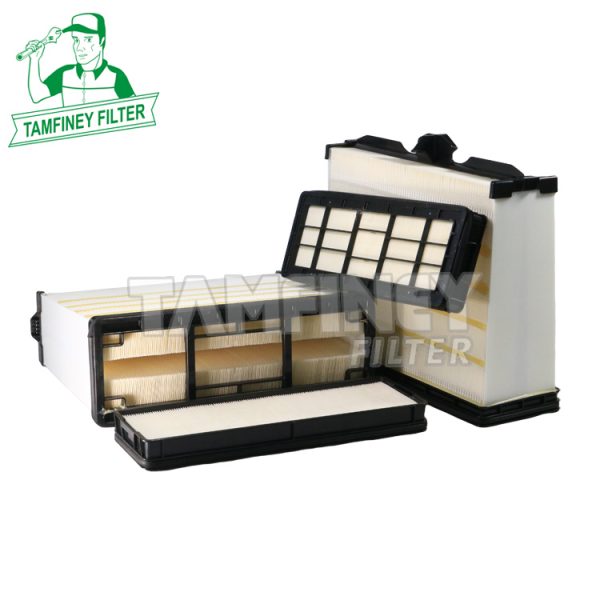

Af55014+AF55308
The filtration efficiency is more than 80%. The second stage is a microporous paper filter element (generally called the main filter element), which has a filtration efficiency of more than 99.5%. There is also a safety filter element after the main filter element, which is used to prevent dust from entering the engine when installing and replacing the main filter element or when the main filter element is accidentally damaged. The material of safety core is mostly nonwovens, and filter paper is also used.
| Weight | 2107 g |
|---|---|
| Outsite Diameter | 406 mm |
| Inside diameter | 149 mm |
| Height | 356 mm |
| Application | JCB, Hyundai |
| MOQ | 10 SETS |
| Media | Full adhesive paper, Composite paper |
Cross Reference For Af55014+AF55308
Primary air filter
Cummins 5261249; Fleetguard AF55014; Vogele 2216429; Wirtgen 2220358; Donaldson DBA5292 BALDWIN PA31002
HYUNDAI-11LL-45180PB ; JCB 333/E3685
Doosan 400504-00049 400404-00049, Schupp SF SL81759 SL81758 WIX WA10714
Safety air filter
Cummins 5261251; Doosan 400504-00048 400504-00030; Fleetguard AF55308; JCB 333/E3686;
Wirtgen 2220366; Vogele 2216432; Donaldson P633483, X011872 DYNAPAC 4812034567 WIX WA10808
Baldwin PA31003 HYUNDAI 11LL-45190 11LL-45190PB ONAN A026M872 SCHUPP SF SL81759
Similar Filters
| Description | G.W. | TMY NO. | OEM NO. | OD*ID*H | APPLICATION |
| AIR FILTER BIGGER | TMY-AF55020 | Fleetguard AF55020, AF5502000JX CUMMINS 5283826 DOOSAN 400504-00128 46595499 JLGI 70024177 BALDWIN PA31004 HIFI SA16830 |
232*193*251 | DOOSAN | |
| AIR FILTER SMALLER | TMY-AF55320 | Fleetguard AF55320; Cummins 5310325 BALDWIN PA31007 | 229*177*36.5 | ||

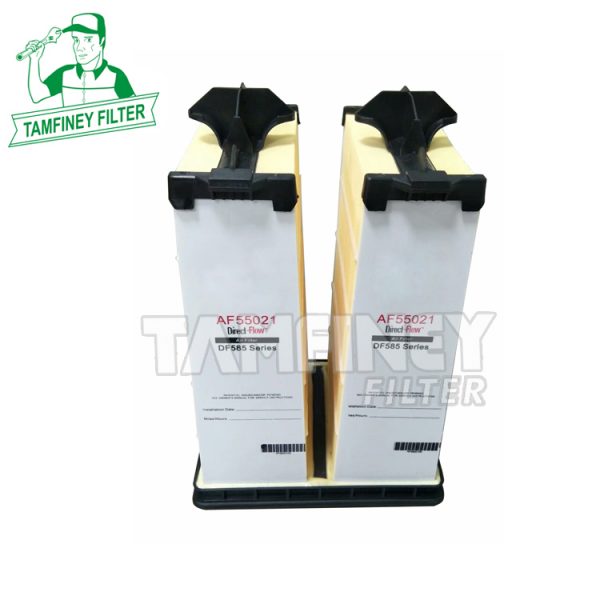

| AIR FILTER BIGGER | TMY-AF55021 | Fleetguard AF55021; Cummins 5288553; JLG Industries Inc. 70024175 BALDWIN PA31006 AGCO 700738183 KOMATSU 600-185-2810 HIFI SA16797 |
231*193*349 | KOMATSU | |
| AIR FILTER SMALLER | TMY-AF55312 | Agco 700738184; Fleetguard AF55312 AF5531200JF; JLG Industries Inc. 70024176 BALDWIN PA31005 | 225*177*36.5 |
| AIR FILTER BIGGER | 3061g | TMY-AF55015 | FLEETGUARD AF55015 AF55015VE, AF55015VEJX Cummins 5261250 Baldwin PA31000 Doosan 400504-00029 HYUNDAI-11Q9-10180 11Q9-10180PB WIRTGEN-2217025 WIX WA10715 Schupp SF SL81736 DONALDSON DBA5293 Sennebogen 157840 |
298*279*350 | HYUNDAI |
| AIR FILTER SMALLER | 542g | TMY-AF55309 | BALDWIN PA31001 CUMMINS 5261252 Doosan 400504-00048; Fleetguard AF55309; Wirtgen 2217026, 2217036; Donaldson P633484; SF-Filter SL81735 |
287*262*38 | DOOSAN |
